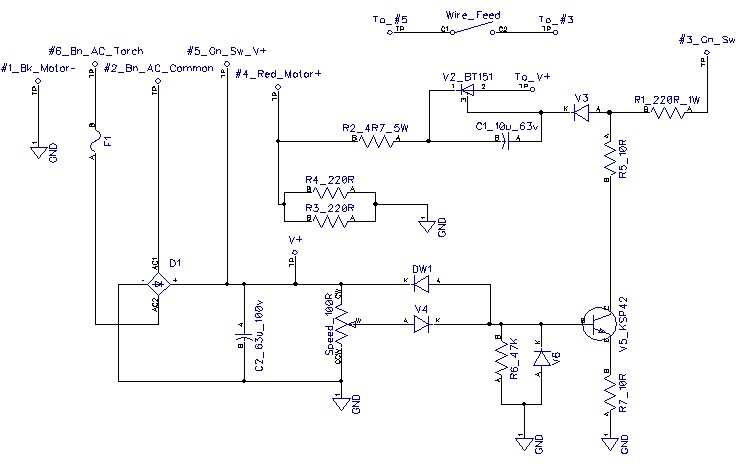

Schematic diagram for the CS-100 wire feed motor control board

If you have DipTrace software for schematic diagrams, the .dch file is here. (right-click and select Save Target As)
